Kubota B2301 - B2601 tractor cab
Home   |  My Account

Kubota B2301/B2601


PREMIUM CAB
  • Commercial-grade enclosure, powder-coated steel frame, roof and doors
  • Tempered safety glass windshield, sliders and rear panel
  • Excellent operator visibility
  • Venting windshield
  • Front wiper
  • Front hinged steel roof lifts on gas shocks and rear glass panel easily lifts out for backhoe operation
  • Pin-hinged doors can be removed in seconds without tools. One pin is longer than the other making installation much easier
  • Total Seal doors feature full rubber seal around door perimeter
  • Doors are supported with gas shocks for easy opening and better control in windy conditions
  • Under 7 foot high to fit in most homeowners' garage

STANDARD CAB
  • Commercial-grade enclosure, powder-coated steel frame, roof and doors
  • Tempered safety glass windshield, acrylic door windows and vinyl rear curtain
  • Excellent operator visibility
  • Venting windshield
  • Optional front wiper
  • Optional glass rear panel available
  • Pin-hinged doors can be removed in seconds without tools. One pin is longer than the other making installation much easier
  • Total Seal doors feature full rubber seal around door perimeter
  • Doors are supported on gas shocks for easy opening and better control in windy conditions
  • Under 7 foot high to fit in most homeowners' garage

FIT LIST & ORDER INFORMATION
CURTIS P/NTRACTOR MODEL & DESCRIPTION
1KB01PR
Premium Cab - fits Kubota B2301 / B2601

1KB01ST
Standard Cab - fits Kubota B2301 / B2601







SHIPPING WEIGHTS
  • Premium cabs installed weigh approximately 256 lbs.
  • Standard cabs installed weigh approximately 230 lbs.

CAB HEIGHT
  • 62 inches above floorboard


Features and specifications may change or vary per model.

LITERATURE

ACCESSORIES


Cab_compressed20160318091647

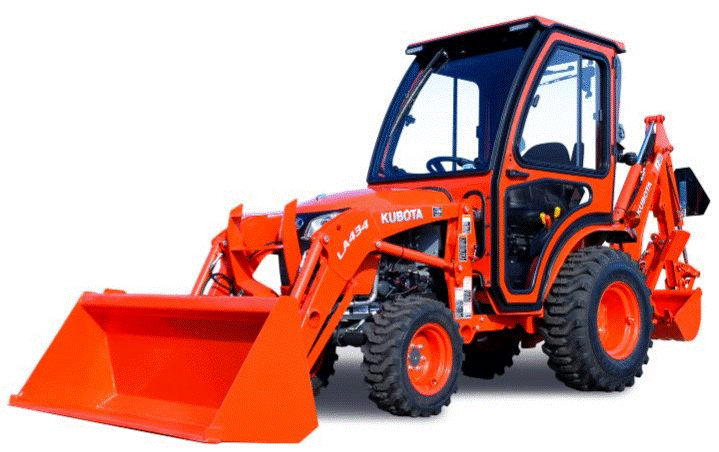

PREMIUM CAB Shown With Optional Low-Profile Work Lights

B2301_back_compressed20160318145842

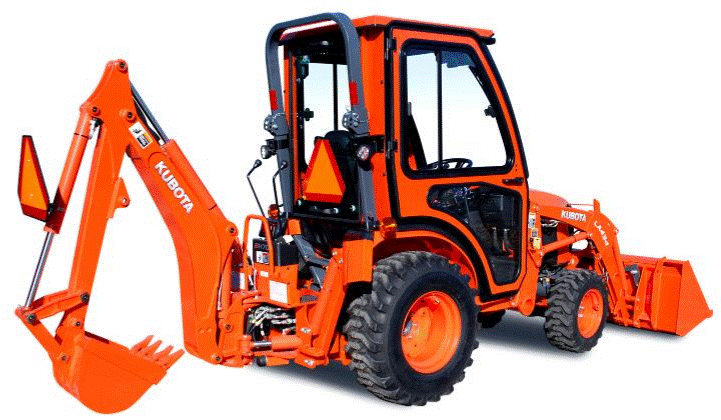

PREMIUM CAB SHOWN ABOVE

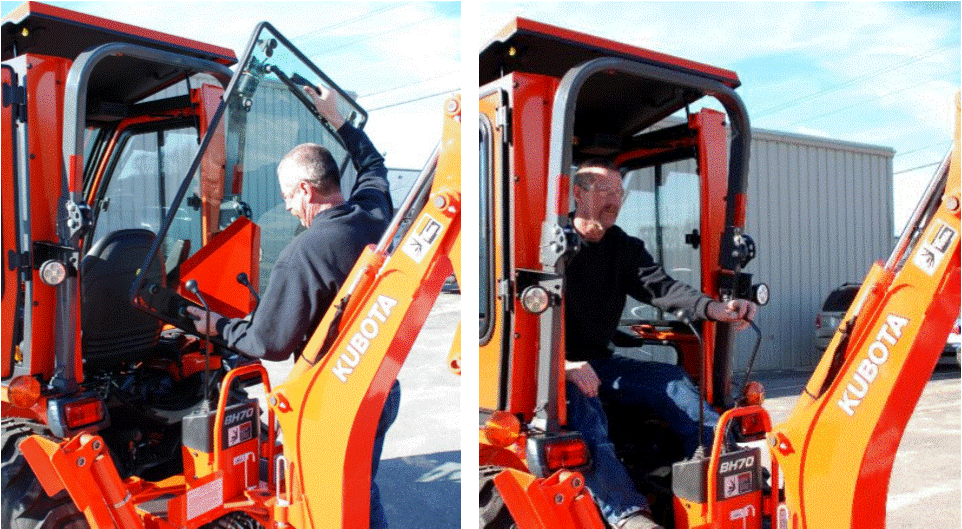

PREMIUM CAB - Rear Glass Panel Removes Easily for Backhoe Operation


Standard_model_compressed20160318145843B2301_standard_back20160318145843



STANDARD CAB Shown With Optional Low-Profile Work LightsSTANDARD CAB with rear vinyl rear curtain
