Modular Cab for Club Car Carryall

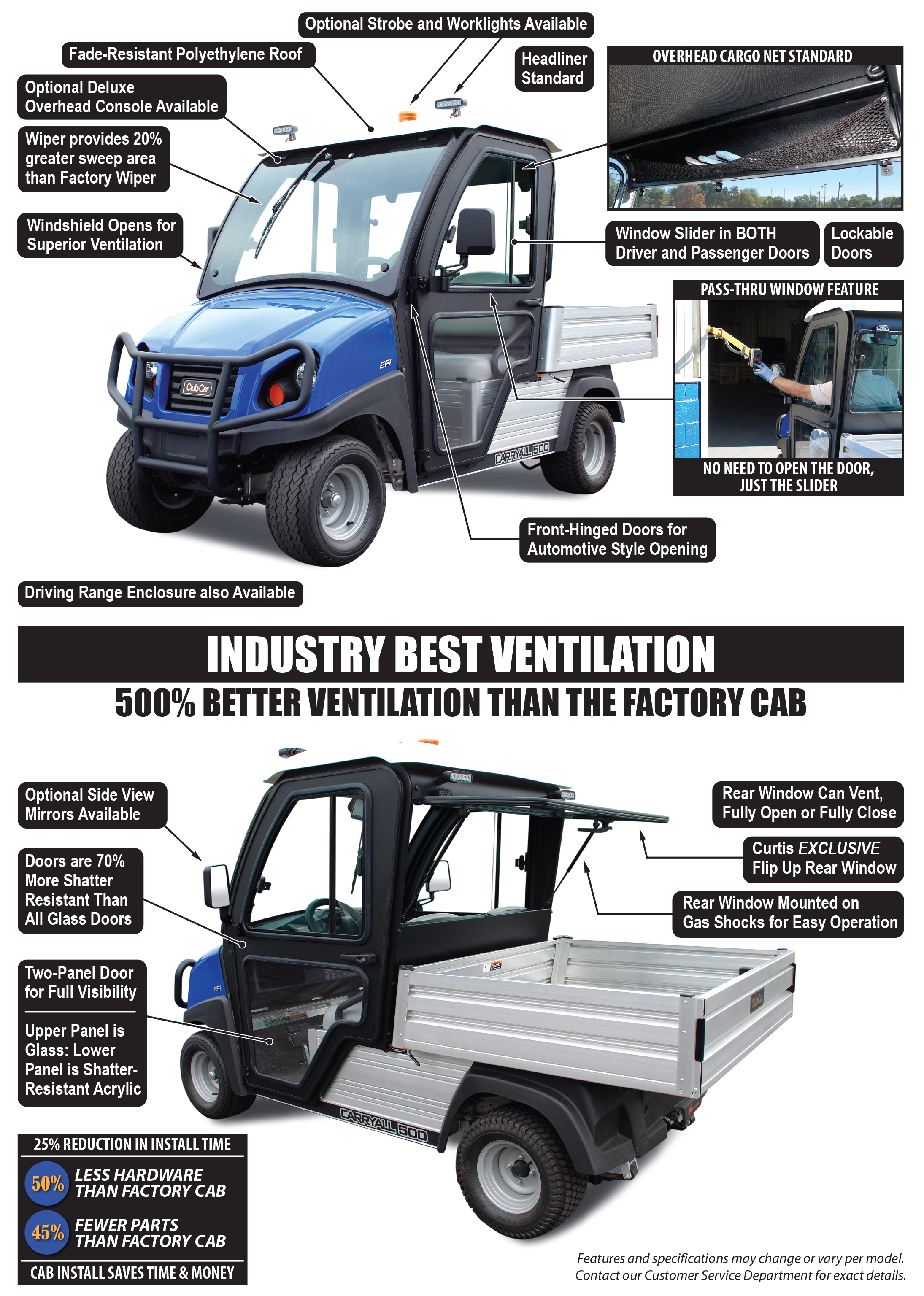

  • Less hardware, fewer parts - reduced installation time – saves at least 1 hour of installation time
  • 500% more ventilation for cooler, more productive operation (sq. ft. of ventilation) - INDUSTRY BEST!
  • 16% lighter for extended range and better fuel economy
  • More storage room - overhead cargo net is standard of both modular cab and driving range enclosure
  • Doors are 75% more durable; dual-sliding windows for both doors for better ventialation; pass through window feature allows you to reach outside the cab without opening the doors
  • Front-hinged doors - more convenient access to bed, more productive operation
  • Flip-up rear window - significantly enhance ventilation plus access to the cargo bed
  • Pre-wired windshield wiper - save time for installation and provides 20% greater sweep area than factory wiper
  • Optional overhead console is also available, with pre-wired harness
  • Driving range enclosure is also available

FIT LIST & ORDER INFORMATION
CURTIS P/N MODEL & DESCRIPTION
1CCCA Club Car Carryall Complete cab kit (2014- ) Fits Carryall 300, 500, 550 and700 models
1CCCAC Club Car Carryall Cab windshield, roof and side frames - No doors or rear window (2014-)
1CCCABC Club Car Carryall Driving Range Enclosure (2014- )
1CCCADR Club Car Carryall steel door kit, set of 2 (2014-)
1CCCARW Club Car Carryall rear window (2014- )
1CCCAOC Optional Club Car Carryall overhead console (2014- )
1CCCAOC-WK Additional relay harness for overhead cosole on gasoline vehicles (Ask your representative for more details)


LITERATURE

INSTALLED WEIGHTS

  • Modular cabs weigh approximately 285 lbs
  • Cab w/o doors weigh approximately 150 lbs
  • Driving range cab weigh approximately 200 lbs
SHIPPING WEIGHTS
  • Modular cab weighs approximately 385 lbs
  • Cab w/o doors weigh approximately 250 lbs
  • Rear window weighs approximately 25 lbs
  • Door set weighs approximately 110 lbs
  • Driving range cab weighs approximately 300 lbs
HEIGHTS FROM THE FLOORBOARD
  • Modular cab is 61" and 63-1/2" with the strobe light
  • Driving range cab is same height as the above
HEIGHTS FROM THE GROUND
  • Modular cab is 74" and 76-1/2" with the strobe light
  • Driving range cab is same height as the above
