AC For 48V Electric Vehicles
$3,373.75MSRP

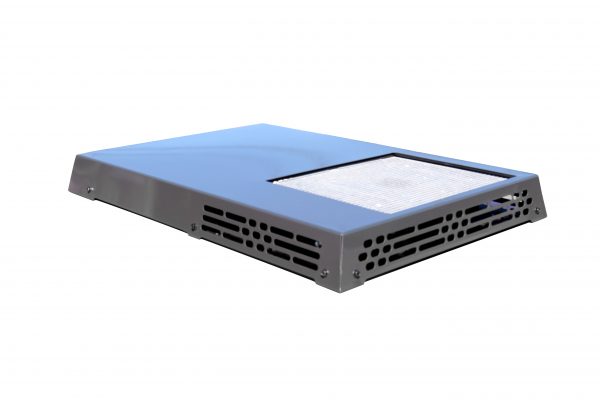

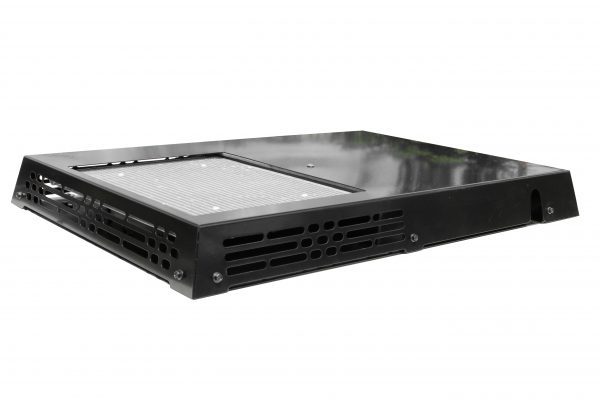

Kit contains AC Unit, 48V Converter Kit, Roof Mounting Template & AC Unit Cover.
(Installer responsible for roof modifications to mount AC unit & wiring from vehicle to system)
Real air conditioning for 48V electric vehicles offers users ultimate operator comfort with protection from the sun, heat, rain, dust, and insects.
Description
- A self-contained system requiring only 3 wire connections to the vehicle (system requires 12V switched power & 16 amps at 48V to operate)
- Stylish, very low-profile design
- The overhead console features multi-speed fan control, AC compressor switch & four 360-degree adjustable louvers
- Comes pre-charged with refrigerant
Required:
- Unit: (1ACUNIT-G2)
- A/C Cover: (1AC48VCONVK-TB)
- Shipping dimensions: 30 x 41 x 15 inches
- Shipping weight: 86 lbs.
- Weight: 58 lbs. (AC unit with cover)
- System Voltage: 12-volt DC
- Running Amperage Draw: 60 amp, 16 amp @48V
- Housing: Powder-coated, corrosion-resistant aluminum alloy
- Cover: Powder-coated, corrosion-resistant aluminum alloy
- Evaporator Core: Automotive grade, corrosion-resistant aluminum alloy, tube, and fin
- Condenser Core: Automotive grade, corrosion-resistant aluminum alloy, bar plate, and fin
- Condenser Fan: Automotive grade, 12-volt 20 amp
- Evaporator Blower: Automotive grade, 12-volt, 10 amp squirrel cage fan with 3 speeds
- Intake: Laser cut into case, single point, recirculating, non-filtered
- Outlet: 4 adjustable louvered vents
- Operator Controls: Compressor On/Off, System On/Off with 3 blower speeds
- Load Control: Patented electronic automated system control of load and function
- Thermostat: Electronic, thermistor sensor, non-adjustable
- Refrigerant: 2.1 lbs., R134a
1-Year Warranty against defects in materials and/or workmanship.
