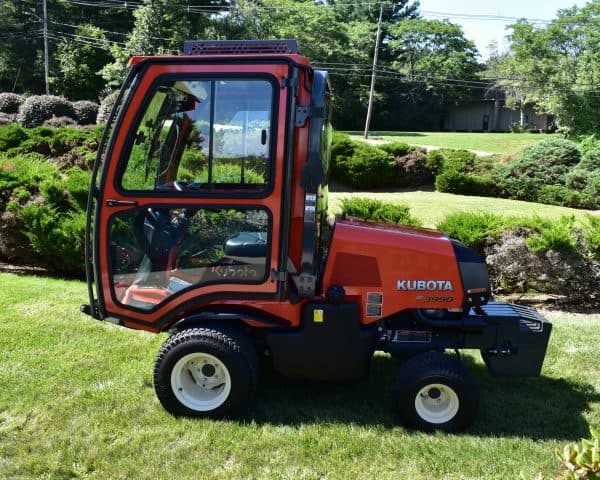

AC For Kubota F-Series 3990
$4,317.50MSRP
Fits Kubota Model F3990

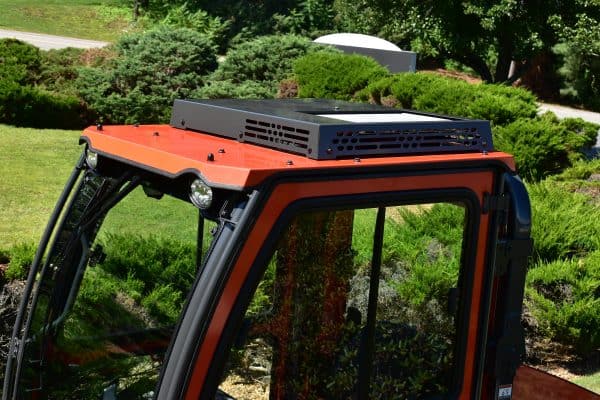

Real air conditioning for the Kubota F3990 models offers users ultimate operator comfort with protection from the sun, heat, rain, dust, and insects.
Description
- Dynamic load control software efficiently manages vehicle electrical power with minimal draw
- Stylish, low-profile design for maximum clearance
- The overhead console features multi-speed fan control & four 360-degree adjustable louvers
- The power kit includes a supplemental alternator
- Simple and easy installation in about 2 hours
- Comes pre-charged with refrigerant – no complicated initial setup
- Includes replacement roof
Required:
- A/C unit to fit the F3990 (1ACUNIT-G2)
- A/C Roof (1ACKF2RFK)
- A/C Power Kit (1ACKF2DRK)
- Shipping dimensions: 30 x 41 x 15 inches
- Shipping weight: 86 lbs.
- Weight: 58 lbs. (AC unit with cover)
- Height Above Cab: 3-5/8″
- Intrusion Into Cab: 2″ (operator area) 3″ (lowest Point)
- System Voltage: 12-volt DC
- Running Amperage Draw: 60 amp (high blower speed)
- Housing: Powder-coated, corrosion-resistant aluminum alloy
- Cover: Powder-coated, corrosion-resistant aluminum alloy
- Evaporator Core: Automotive grade, corrosion resistant aluminum alloy, tube, and fin
- Condenser Core: Automotive grade, corrosion-resistant aluminum alloy, bar plate, and fin
- Condenser Fan: Automotive grade, 12-volt 20 amp
- Evaporator Blower: Automotive grade, 12-volt, 10 amp squirrel cage fan with 3 speeds
- Intake: Laser cut into case, single point, recirculating, non-filtered
- Outlet: 4 adjustable louvered vents
- Operator Controls: Compressor On/Off, System On/Off with 3 blower speeds
- Load Control: Patented electronic automated system control of load and function
- Thermostat: Electronic, thermistor sensor, non-adjustable
- Refrigerant: 2.1 lbs., R134a
1-Year Warranty against defects in materials and/or workmanship.
