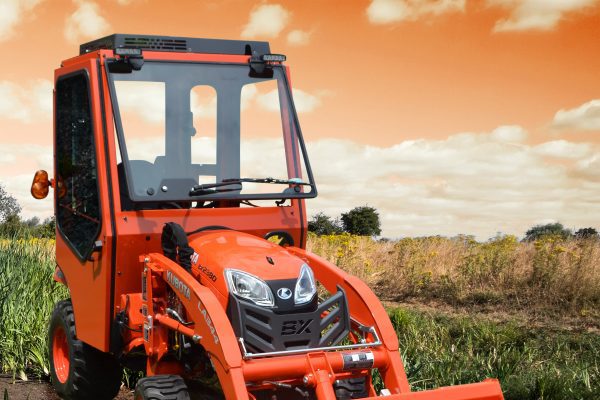

Kubota BX80 Advantage Cab with A/C
P/N: BX80CABACBUNDLE
$8,528.75MSRP
Curtis Advantage Series Cab with AC Bundle fits Kubota models BX2380 & BX2680 (2018+ model years). All-steel cab with vehicle color-matching doors. Includes air conditioner, heater, and front windshield wiper.
Real air conditioning for the Kubota BX2380 & BX2680 (2018+) models offers users ultimate operator comfort with protection from the sun, heat, rain, dust, and insects.
*Contact your dealer for shipping and installation costs.
**Cab may be shown with optional accessories
Description
Cab Features:
- Front windshield wiper
- Cab heater
- Corrosion-resistant powder-coat finish
- Kubota orange color match doors and roof
- Venting glass windshield
- Venting/removable rear glass panel; locks open to vent or lifts out
- Doors and rear panel are pin-hinged for easy removal
- Large, clear glass windows and rear panel provide distortion-free visibility
- Locking doors
A/C Features:
- Dynamic load control software efficiently manages vehicle electrical power with minimal draw
- Stylish, low-profile design allows enough clearance to park in most standard garages
- The overhead console features multi-speed fan control & four 360-degree adjustable louvers
- The power kit includes a supplemental alternator
- Simple and easy installation in about 2 hours
- Comes pre-charged with refrigerant – no complicated initial setup
- Includes replacement roof
- Air conditioning available for Kubota BX Series
Required:
- A/C unit to fit the BX2380 & BX2680 (1ACUNIT-G1)
- Replacement roof for the BX2380 & BX2680 (1ACBX80CA2RFK)
- Alternator kit for 23 HP BX2380 (1ACBX2380DRK)
- Alternator kit for 26 HP BX2680 (1ACBX2680DRK)
Cab Specs:
- Cab weight: 305 lbs.
- Shipping weight: 368 lbs.
- Height above floorboard: 59.25 inches floorboard to roof
- Heater: 20,000 BTU hot water
- Backhoe compatible: No
- Windshield: Glass
- Door windows: Glass
- Rear panel: Glass
- Roof: Steel with acoustical headliner
- Wiper: 12-volt heavy-duty, 110-degree sweep
- Pre-drilled holes for optional side mirrors
- Installation manual
A/C Specs:
- Shipping dimensions: 30 x 41 x 15 inches
- Shipping weight: 86 lbs.
- Weight: 58 lbs. (AC unit with cover)
- Height Above Cab: 3-5/8″
- Intrusion Into Cab: 2″ (operator area) 3″ (lowest Point)
- System Voltage: 12-volt DC
- Running Amperage Draw: 60 amp (high blower speed)
- Housing: Powder-coated, corrosion-resistant aluminum alloy
- Cover: Powder-coated, corrosion-resistant aluminum alloy
- Evaporator Core: Automotive grade, corrosion-resistant aluminum alloy, tube, and fin
- Condenser Core: Automotive grade, corrosion-resistant aluminum alloy, bar plate, and fin
- Condenser Fan: Automotive grade, 12-volt 20 amp
- Evaporator Blower: Automotive grade, 12-volt, 10 amp squirrel cage fan with 3 speeds
- Intake: Laser cut into case, single point, recirculating, non-filtered
- Outlet: 4 adjustable louvered vents
- Operator Controls: Compressor On/Off, System On/Off with 3 blower speeds
- Load Control: Patented electronic automated system control of load and function
- Thermostat: Electronic, thermistor sensor, non-adjustable
- Refrigerant: 2.1 lbs., R134a
1-Year Warranty against defects in materials and/or workmanship.
