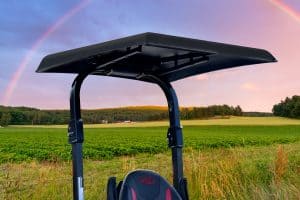

Universal ROPS-Mount Canopy
$599.00
56” long and 42” wide at the back, tapering to 37” in the front
Versatile | Lightweight Aluminum | Reversible | Universal Fit
Canopy, mount, and all hardware included.
Available in 6 Colors: Black, White, Gray, Red, Orange & Green
Turn the canopy to the rear-facing position for shade while operating the backhoe.
Remove the canopy in seconds for easy trailering or to maneuver around low obstacles.
- Canopy adds 4 inches perpendicular to the flat top surface of the ROPS
- Unclipping and removing the top, the brackets extend approximately 3”
- Fits Maximum ROPS Size 3” Wide X 2 ¾” Thick
- Requires 10 inches of flat surface on top of ROPS
Mount/Pivot assembly mounts to vehicle ROPS in minutes. The lightweight canopy features integrated handles with a quick-release latch for easy removal.
- Lightweight aluminum cover – weighs less than 30 lbs.
- Toolless removal in seconds
- Integrated handles – quick-release latches
- Reversible — rear-facing for backhoe operation
- Adjustable positioning – fits angled or straight ROPS
- Canopy top adjusts 6” forward or aft
- Easily installs in 30 minutes
- Trailerable up to 35 mph
Made in the U.S.
FITMENT REQUIREMENTS
- Fits square or rectangular ROPS
- 10” of flat surface on top of ROPS
- 2” to 3” ROPS width
- 1.5” to 2.75” ROPS thickness
- ROPS can be angled +/-36 degrees
- Adjustable 6” forward and back
- Dimensions: 56” long and 42” wide at the back, tapering to 37” in the front
CANOPY SHIPPING DIMS:
- Canopy Dimensions: 60 x 45 x 7 inches
- Canopy Weight: 31 lbs
- Hardware Dimensions: 42 x 25 x 9 inches
- Hardware Weight: 35 lbs
